Floor Door Safety Railing
Description

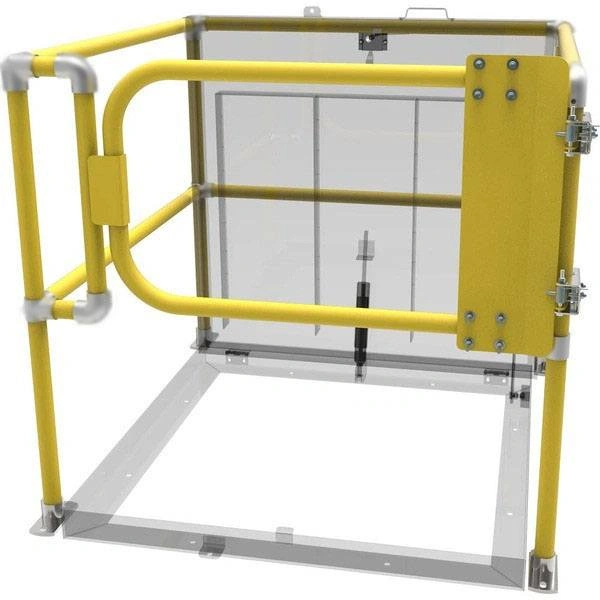

The Nystrom OSHA compliant Safety Railing is an ideal solution to provide a permanent means of fall protection for new and retrofit applications. The safety railing permanently mounts to the floor around an existing floor door or opening.
Features
- OSHA Compliant
- Secure Mounting
- Easy Field Installation
Specifications
| Model | SRTAY |
| Material | Aluminum, 1-1/4 inch ID (1.66 inch OD) Schedule 40 pipe |
| Finish | Safety Yellow Powder Coat |
| Fittings | Cast aluminum alloy with set screw hold |
| Hardware | Hex head bolts 3/8 inch - 16 x 3/4 inch zinc plated steel |
| Exit | Self Closing Gate: Aluminum 1-1/4 inch tubular steel self closing with coil spring |
| Compliance | OSHA 29 CFR 1910.28 and 1910.29 requirements for fall protection; supports 200lbs force |
| Warranty | Five (5) years |
| Sizes | Industry standard and custom sizes available |
Order Guide
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
| BASE | WIDTH | X | LENGTH | EXIT | OPTIONS |
|---|---|---|---|---|---|
SRTAY |
X | ||||
| Standard Sizes (in.) 30 x 18 30 x 24 36 x 30 36 x 36 48 x 48 |
F - Front Exit S - Side Exit (Single Leaf Door) D - Side Exit (Double Leaf Door) |
G - Self-Closing, Gate | |||
VIDEOS
Coming soon.REPLACEMENT PARTS
Coming soon.WARRANTY
NYSTROM warrants all Safety Railings to be free from manufacturing defects in materials, factory finishes, and workmanship for a period of five (5) years from the date of shipment.
Should a product fail to function in normal use within this period, Nystrom shall furnish a replacement or new part at Nystrom’s discretion. Failure to use product in methods consistent with Nystrom product manuals shall relieve Nystrom of any liability. Our liability under this warranty excludes installation or removal costs involved in the product replacement and excludes any responsibility for incidental or consequential damage of any nature.
For information on a warranty claim, please visit our Warranty Support section or call 800 547-2635.
